Machine Rolls, Heavy-Duty BOPP Tape Built for Automatic Packaging Lines
Universal Coating Films (UCF) manufactures machine rolls, the industrial size that loads straight into an automatic case sealer and runs. They sit between the two ends of the range: longer and wider than a retail roll, so a line runs further between changes, but ready to use as supplied rather than a bulk roll that has to be slit down first. For a packaging floor, that combination is the whole point, because every roll change is a stop.
- Heavy-Duty Industrial Roll
What Are Machine Rolls?
A machine roll, known across the industry as a log roll, is a BOPP adhesive tape roll wound to the length and width an automatic carton sealing machine is built to take. It arrives machine ready. Nothing is slit, rewound or repacked before it goes on the line, which is the practical difference between this and a bulk roll.
It helps to place it against the rest of the range. BOPP jumbo rolls are master rolls sold to converters, who slit them down into whatever they sell on, so they are a raw material rather than a finished product. Cut-to-pack tapes are the opposite end: retail sized rolls for hand dispensers and light duty sealers. Machine rolls are the industrial middle, sized for equipment rather than for hands or for converting.
That is why buyers should self select on run volume. If a line seals cartons continuously through a shift, a retail roll runs out too often to be economic and a jumbo roll cannot be loaded at all. The machine roll is the size that matches the machine.
Key Features
- Heavy-duty tensile strength, so the tape holds under load rather than stretching
- Break-free unwind at machine speed, the single most common cause of an unplanned line stop
- Consistent thickness across the full roll, so sealing performance does not drift over a long run
- Even winding tension from the first metre to the last
- Resistance to moisture, temperature shifts and handling through a supply chain
- Strong initial tack on corrugated cartons, including recycled board
- Roll dimensions matched to the sealer model rather than sold in one fixed size
Specifications
| Specification | Available Range |
|---|---|
| Width | 48mm to 75mm (custom widths on request) |
| Length | Extended machine lengths, confirmed per order and sealer model |
| Thickness | 40 to 60 microns for heavy-duty use |
| Film Type | Biaxially oriented polypropylene (BOPP) |
| Adhesive | Acrylic (solvent or water-based) / hot melt |
| Color Options | Transparent, brown, printed on request |
| Core | Standard and custom core sizes to suit the machine |
| Packaging | Individually wrapped, export-standard carton and pallet packing |
Tell us the sealer make and model and we will confirm the width, length and core that fits it, rather than sending a roll that has to be adapted on the floor.
Benefits of Choosing UCF Machine Rolls
The economics of a machine roll are measured in downtime, not in the price of the roll. A longer roll means fewer changes per shift, and every change is a stop, an operator, and a restart. On a line sealing at volume, that difference compounds across a week far beyond any per-roll saving.
Consistency does the same work in the other direction. Adhesion that varies across a roll, or winding tension that loosens toward the core, shows up as jams and re-taped cartons rather than as a specification on paper. Controlling coating and slitting in house is what keeps a roll performing the same way at the end of a run as at the start.
Because UCF produces to specification rather than to a fixed catalogue, roll width, length and core can be matched to the machines already on your floor. That matters most for operations running more than one sealer model, where a single standard roll never quite fits either.
Applications
Automatic Case Sealing
The core use: top and bottom sealing on semi-automatic and fully automatic case sealers, where the tape has to feed, cut and apply cleanly thousands of times without intervention. Consistent unwind matters more here than anywhere else, because a break stops the line rather than just the operator.
High-Volume Warehousing and Fulfillment
Distribution centres and fulfillment operations sealing large parcel volumes through a shift, where roll changeovers are dead time on a picking and packing floor. Longer rolls keep more stations sealing for more of the day.
Industrial Production Line Packaging
In-line carton sealing at the end of a production run, where packaging is the last stage before dispatch and a tape failure holds up everything upstream of it. Heavy-duty film and strong adhesion suit cartons that are filled to weight.
Beyond sealing, machine rolls are also used for bundling, palletized load containment and general industrial packaging wherever a durable, machine-applied seal is needed at volume.
Industries We Serve
- Packaging and case sealing operations
- FMCG production and distribution
- E-commerce and logistics
- Warehousing and fulfillment
- Manufacturing and production line packaging
- Textile manufacturing and bundling
- Pharmaceutical packaging
- Export and international trade
Manufacturing Quality

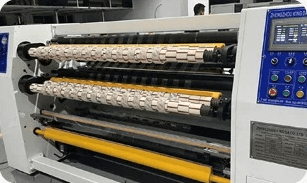

Machine rolls run through the same manufacturing process as every other product UCF makes: raw material sourcing and inspection, adhesive coating, printing where required, slitting to specification, quality inspection, and packing. Coating and slitting are both in house, so quality is controlled during production rather than inspected on arrival.
Checks happen at several points rather than only at the end of the line. For this product that emphasis falls on winding tension and adhesion consistency, because those are the two properties a case sealer exposes immediately. A roll that would pass unnoticed in manual use will jam an automatic head within minutes.
Why Choose Universal Coating Films
- Pakistan's first local BOPP tape manufacturer built specifically for this market
- In-house coating and slitting so winding tension and adhesion are controlled at source
- Custom sizing with width, length and core matched to your sealer model
- Built for run time with longer rolls meaning fewer changes and less line downtime
- Export-ready packaging for international freight without added lead time
- Direct manufacturer pricing without the markup of trading intermediaries
Frequently Asked Questions
What is the difference between a Machine Roll and a Jumbo Roll?
A machine roll is finished and ready to load into a sealing machine. A jumbo roll is a master roll sold to converters, who slit and rewind it into smaller rolls before anyone uses it. If you are sealing cartons rather than manufacturing tape, the machine roll is the one you want.
Which sealer types are Machine Rolls compatible with?
They suit semi-automatic and fully automatic carton sealers that take a standard taping head. Compatibility comes down to width, core size and roll diameter, so send us the make and model and we will confirm the specification that fits before you order.
Can roll length be customized for our machine?
Yes. Length, width and core size are produced to specification rather than to a fixed catalogue, which matters most if you run more than one sealer model and a single standard roll does not fit either properly.
Do you supply Machine Rolls for export?
Yes. Export orders are individually wrapped and packed in reinforced cartons with palletizing suited to sea and air freight, and volumes scale from a trial shipment to recurring container loads.
Get a Quote for Machine Rolls
Tell us the sealers you run and the volume you seal, and our sales team will confirm the roll specification, pricing and lead times that suit the line.
Conclusion
Machine rolls are the size a packaging line actually runs on: heavy enough for industrial cartons, long enough to keep a sealer working between changes, and finished so nothing has to be done to them first. Universal Coating Films manufactures them locally in Pakistan, coating and slitting in house, with width, length and core produced to match the equipment on your floor rather than a fixed catalogue size. For operations where a stopped line costs more than the tape, that control is the point.
